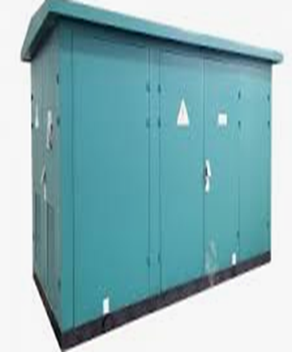

A Compact Substation (CSS) is a highly efficient and space-saving electrical substation used to step down voltage and distribute power in confined spaces. Compact substations are designed for applications where traditional substations would be too large, making them ideal for urban areas, industrial sites, or renewable energy projects such as wind farms.
Key Features of Compact Substations (CSS):
1.Space Efficiency:
- Designed to fit in smaller, confined spaces, which is ideal for locations where space is limited, such as urban environments, offshore platforms, or remote industrial areas.
2.Modular Construction:
- Many compact substations are modular, meaning they can be easily transported, assembled, and expanded if necessary. This modularity also allows for easy maintenance and upgrade of components.
3.Integrated Systems:
- CSS units typically house all required components, such as transformers, switchgear, protection systems, and control panels, within a single compact enclosure, allowing for quick installation and minimal on-site construction.
4.Durability and Safety:
- These substations are built to withstand harsh environmental conditions, including high temperatures, moisture, and vibrations. The enclosures are often weatherproof and fire-resistant, ensuring both the safety of the equipment and personnel.
5.Voltage and Capacity Flexibility:
- Compact substations are customizable to meet the specific voltage levels and power requirements of different applications. They are typically used to step down voltage from high-voltage transmission lines to lower levels for distribution.
